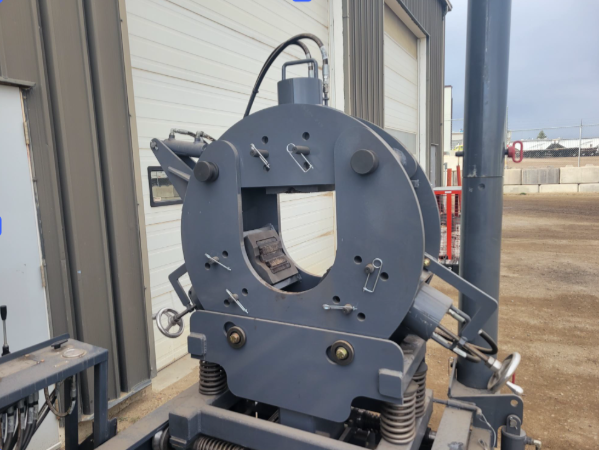

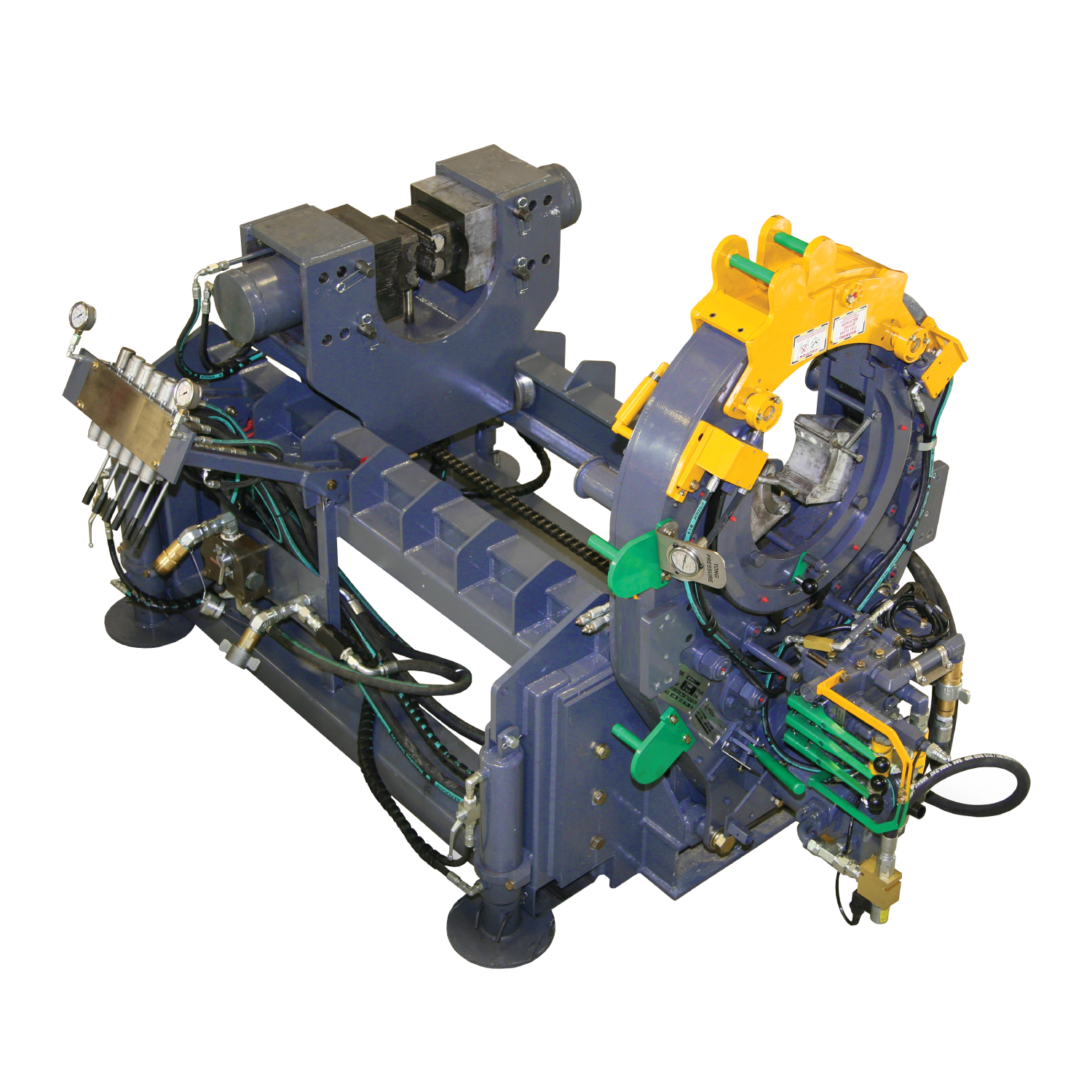

The Bucking Frame, when coupled with any power tong, can be used for making and breaking out threaded connections. The compact footprint can be utilized in even the most remote locations and it safely assembles and disassembles connections for casing accessories (float shoe / collar), pups, hangers and many other threaded tools.
ADAPTERS FOR ALL
MAKES AND MODELS
OF POWER TONGS
COMPACT FOOTPRINT
DUAL BACK-UP DESIGN:
2 JAW 25,000 to 35,000
3 JAW 50,000
Tubular Running Solutions
BUCKING
FRAME
SPECS
- PIPE SIZE RANGE: Power Tong 4.5 to 13.625 in (114.30 to 346 mm). Back-up jaw 4 to 15 in (101.60 to 381 mm)
- TORQUE RANGE: 4.5 to 5.5 in, 20 to 25K, 35K unit / 4.5 to 5.5 in, 30 to 35K, 50K unit / 25 to 35K (depending on tong), 35 unit / 50K (depending on tong), 50K unit
- FLOW RATING: 40 to 60 GPM (152 to 227 LPM)
- WEIGHT: 35K, 4,500 lbs. 50K, 6,000 lbs (tong dependent)
- DIMENSIONS: Length 95 in (2,413 mm), Width 58 in (1,473 mm), Height 68 in (1,727 mm)
- HEIGHT ADJUSTMENT: 12 in (305 mm)
- BACK-UP JAW SCOPE: Maximum 52 in (1,321 mm). Minimum 9 in (229 mm)
- HYDRAULIC STANDS: 24 in height adjustment, 3,000 lbs capacity
- OVERHEAD CRANE: 600 lbs hoisting capacity, 340 degree rotation
**All specifications are power tong dependent
- Adjustable back-ups for a wide range of pipe sizes and torque profiles
- Reduces hazards and NPT on the rig floor
- Inline time savings equate to more productive rig time and seamless operation
NEW HIGHER TORQUE BACK-UP DESIGN
