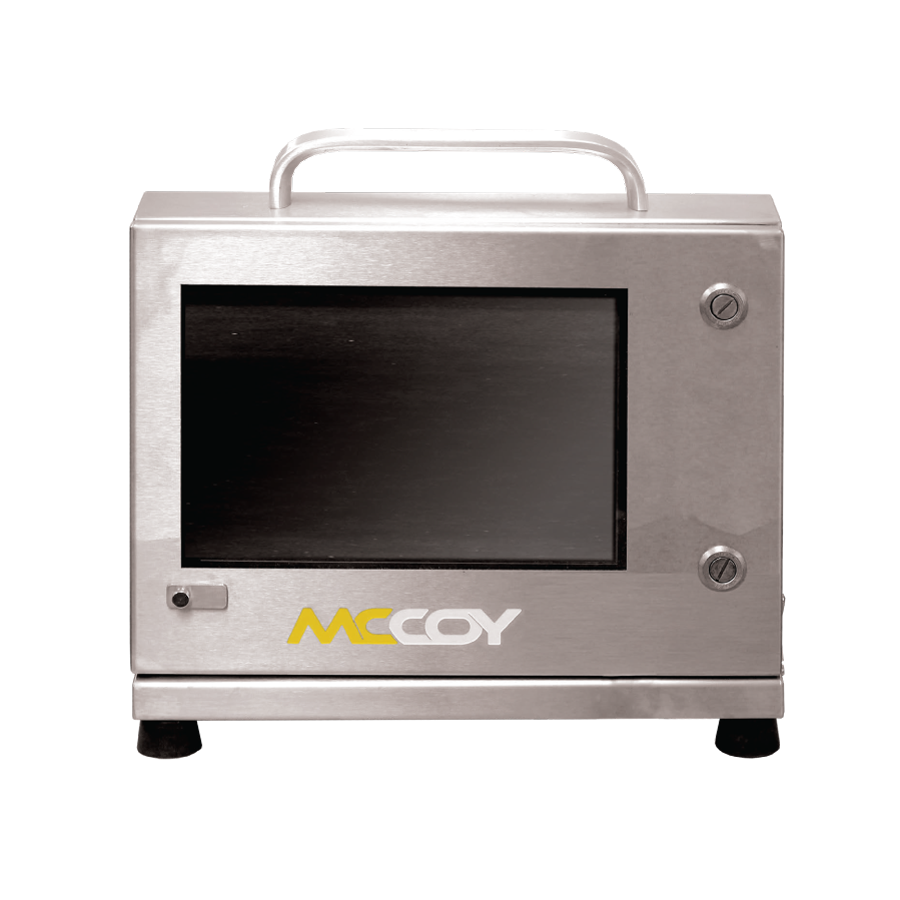

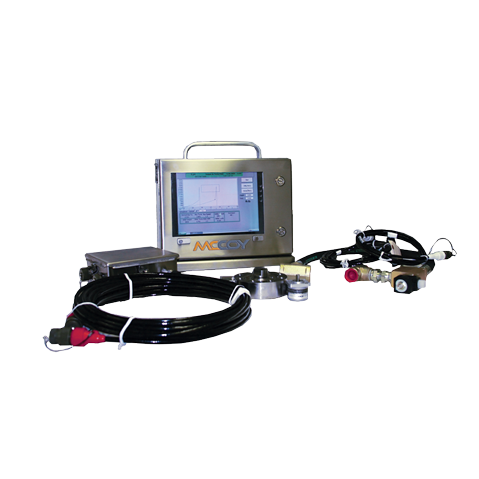

Connection Integrity Monitoring
CATM
Computer Analyzed Torque Monitoring
ForPOWER TONGS
With a variety of issues that could occur while making up an array of different connections on the market, at Hybrid Energy Services it is our belief that all tubular connections should use computer analysis. CATM delivers a graphical representation that allows us to interpret and prevent damaged or incorrectly made up connections from entering the wellbore. It helps to ensure peak performance and proper isolation for your packer systems. This isolation reduces and helps to eliminate leaks during the fracturing (FRAC) process, in turn mitigating environmental and unforeseen production risks.
INTRINSICALLY SAFE
STAINLESS CASE
REAL-TIME
GRAPHICAL
TORQUE ANALYSIS
Connection Integrity Monitoring
CATM
Computer Analyzed Torque Monitoring
ForPOWER TONGS
FIELD
ACCOUNTABILITY
- Connection-related issues are stopped immediately, mitigating the risk of further connection damage
- Detailed graphical reports are generated highlighting each connection, statistical analysis and summary reports
- Reduces damage due to RPM, over-torque, over-rotation and alignment issues
- Recording and reporting torque, turns, RPM and applicable shoulder data for semi-premium and premium connections
- Automatic system review of torque vs turns and time, delta torque and delta turns
- Automatic shoulder selection and zoom review for accurately confirming shoulder point before connection approval
- Sensory control to ensure the computer analytics can sample and review data correctly even during challenging runs, conditions and connections
- Data overlay to ensure consistency of the "last 10" joint review
- Real-time hydraulic dump control to protect the integrity of the connection
