Connection Integrity Monitoring
CATM
Computer Analyzed Torque Monitoring
ForTOP DRIVE

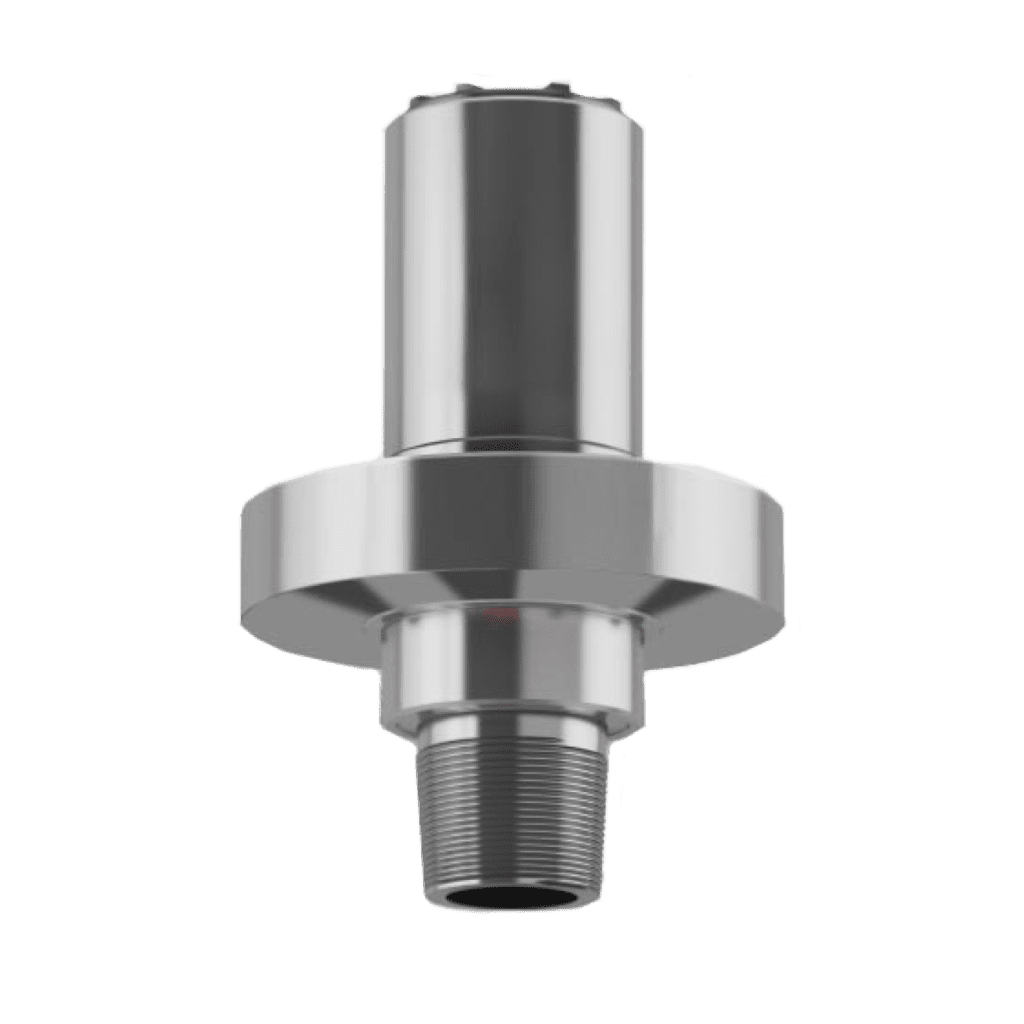

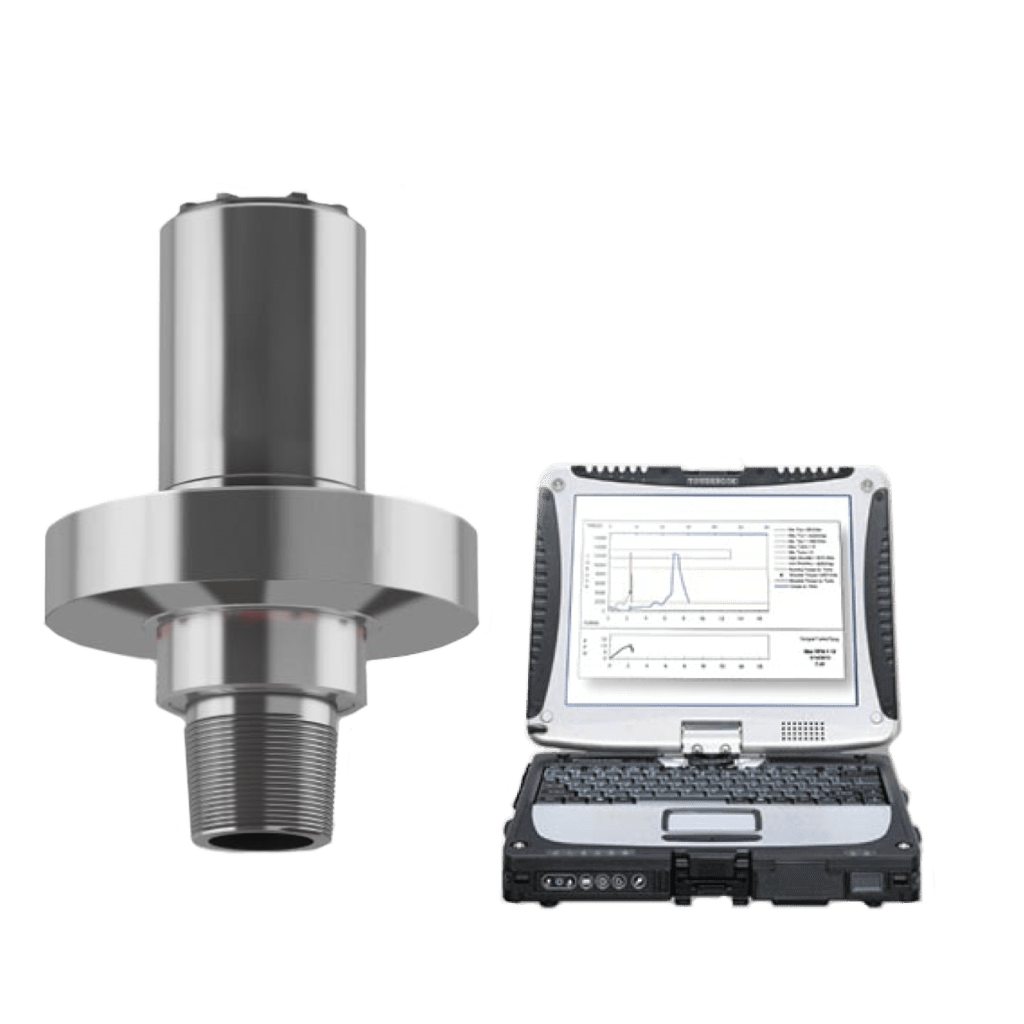

The Torque Sub monitors the top drive output (Torque, RPM, and Hookload) and displays a real-time graphical representation of the data delivered. From this we develop a torque vs turns and time graph, exactly like the graph that would be obtained from a power tong using a traditional CATM system. This allows us to monitor and uphold the same integrity while making up tubular connections with a CRT.
RECORDS TURNS
WITHOUT EXTERNAL
ENCODER ASSEMBLY
MONITORS TORQUE,
RPM, AND
HOOK LOAD
Connection Integrity Monitoring
CATM
Computer Analyzed Torque Monitoring
ForTOP DRIVE
SPECIFICATIONS
- TORQUE CAPACITY: -50,000 to +50,000 ft/lbs (67,800 Nm)
- HOIST CAPACITY: 200,000 to 1,000,000 lbs (271,000 to 453,600 kg) tension with 2.25 safety factor
- SAMPLING RATE: Dynamic, up to 480 samples/second
- TORQUE / HOOK LOAD ACCURACY: 1% of full scale
- TURNS RESOLUTION: 0.001 turns
- TEMPERATURE RANGE: -40°C to 70°C (158°F)
- BATTERY LIFE: 30 days of continuous use
- TRANSMISSION: 2.4 GHz approved US, Canada and Europe. Line of sight
- ENCLOSURE RATING: Type 4X and IP 66
- HAZARDOUS AREA: Class 1, Division 1, Zone 1, Group IIB, T4. EX Flameproof Enclosure (d). CSA / UL / ATEX / IECEx
- CERTIFICATIONS: Designed to API 8C. Threads to API 7
- WEIGHT: Approximately 350 lbs (160 kg)
- LENGTH: 21.6 in standard shoulder to shoulder. 18.6 in minimum with zero recut allowance
- Infrared (IR) turns counter built into the system. No external turns counters needed
- Highest dynamic sampling rate of all manufacturers
- Long battery life supports extended deployment without service interruption
