Torque Verification
IRON ROUGHNECK
TORQUE TESTING

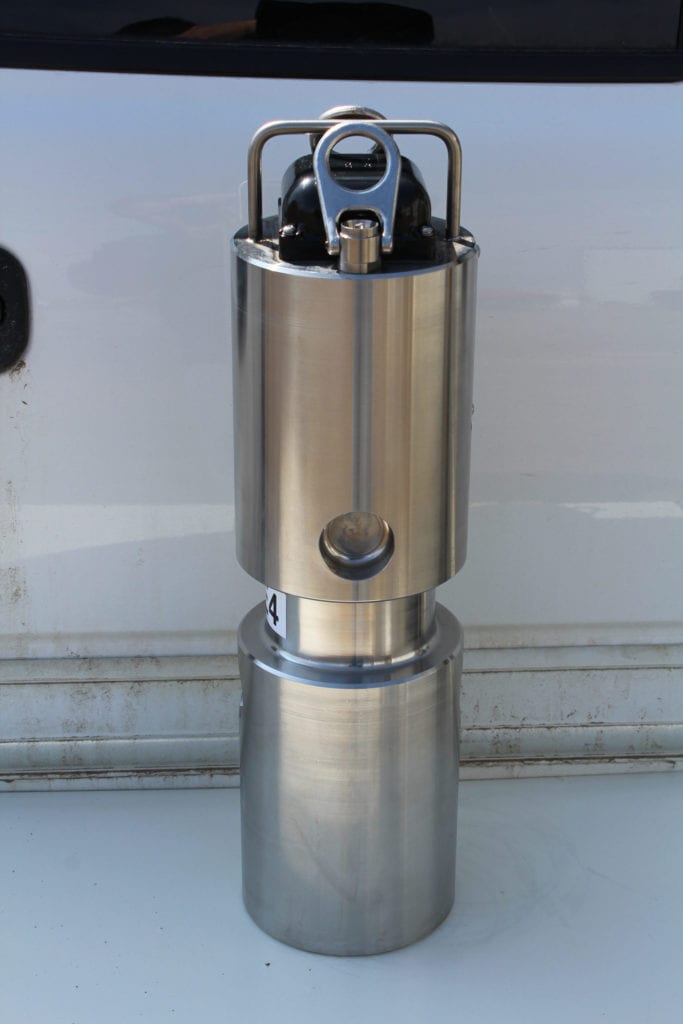

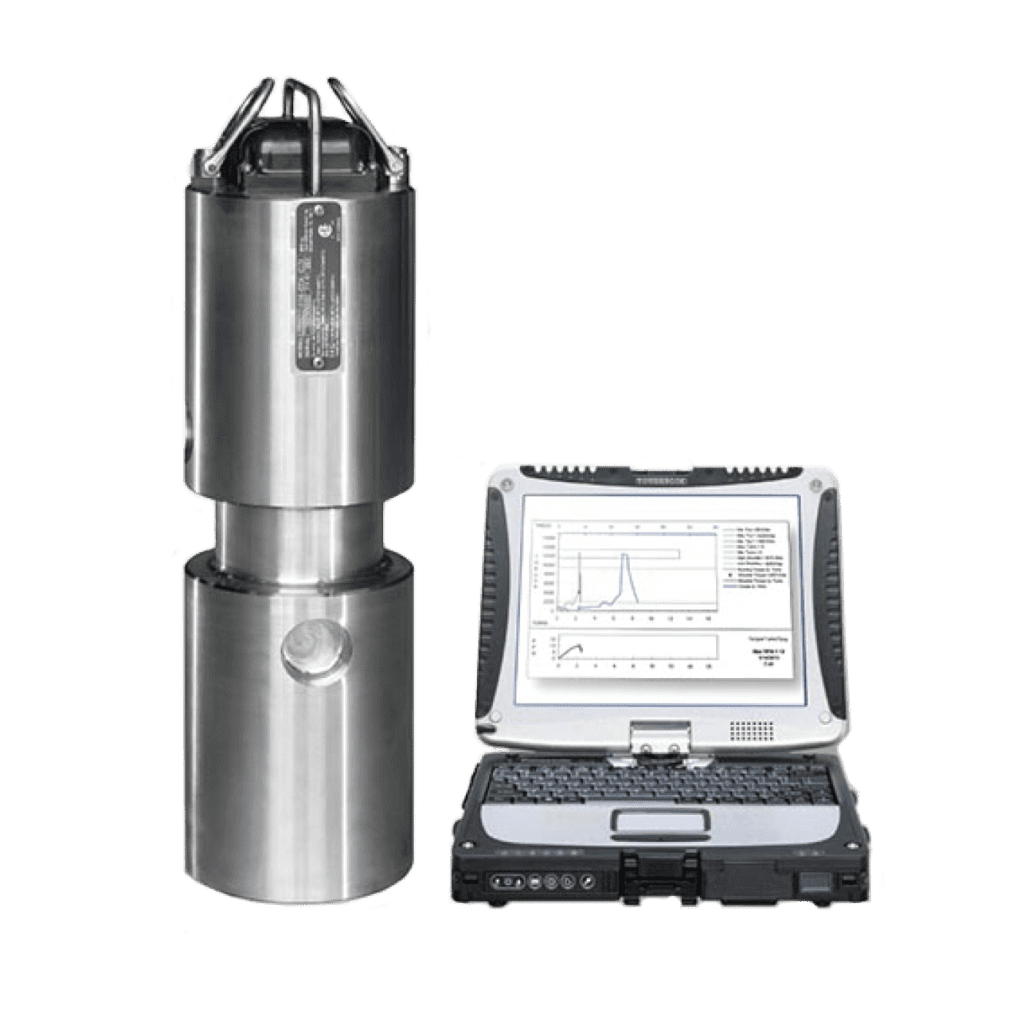

The IRTT is used to regularly verify the torque output of an Iron Roughneck. This ensures that torque output is accurate, and reduces damage to rotary shoulder connections during make-up. Regular verification can prevent downtime, equipment failure, and extend the service life of your drill pipe.
DIRECT TORQUE
MEASUREMENT
NO CALCULATIONS
NO ALGORITHMS
REAL-TIME
GRAPHICAL
OUTPUT
Torque Verification
IRON ROUGHNECK
TORQUE TESTING
SPECS
- FULL-SCALE TORQUE CAPACITY: 65,000 to 150,000 ft/lbs (88,000 to 203,000 Nm)
- PIPE DIAMETER: 6.625 to 9.5 in (168.2 to 241.3 mm)
- GRIP LENGTH: 9.25 to 12.75 in (235 to 323.9 mm)
- ERROR TOLERANCE: 1% (±)
- SAFE OVERLOAD: 110% of full scale
- MATERIAL: 17-4 PH stainless steel
- WEIGHT: 150 to 250 lbs (70 to 115 kg), dependent on torque range
- IRTT LENGTH: 30 to 32 in (762 to 812.8 mm)
- 1 in 20 wells experience a "back-off" or "twist-off" event due to improper connection make-up
- The average cost is $400,000 per event
- 73% of Iron Roughnecks under-torque drill pipe connections
- Over-ranging the torque of a connection can cause stretching of threads and damage to seal areas
- 1 in 6 Iron Roughnecks are out of calibration by 15% or more
