Managed Pressure Drilling
RCD PRESS

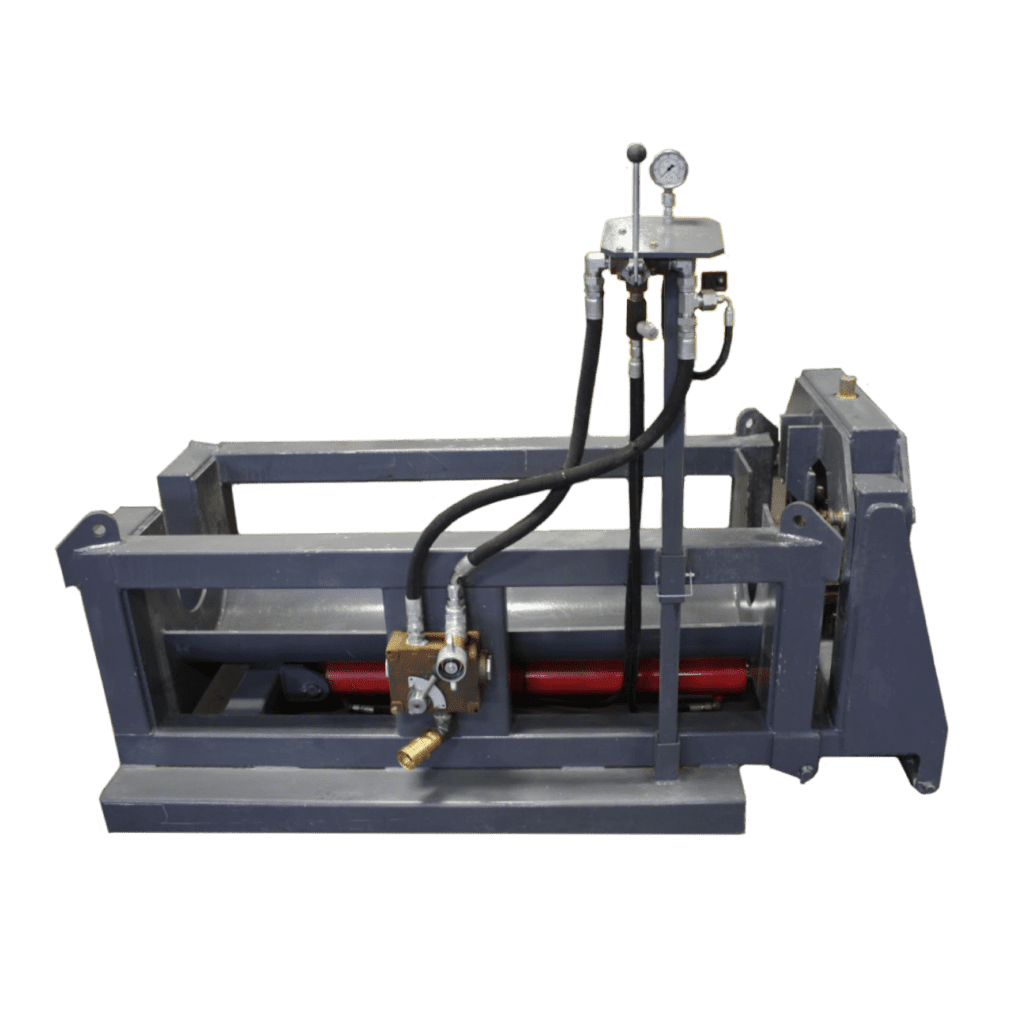

The RCD (Rotating Control Device) Press is used to install and remove a tubular onto an RCD head. The head is used with Managed Pressure Drilling (MPD) and is conventionally installed on the rig floor. This method of installation can cause a variety of handling and safety concerns. Taking the operation offline removes the hazards and the Non Productive Time (NPT) cost of head installation during rig activity.
REDUCES HAZARDS
AND NPT ON
THE RIG FLOOR
OFFLINE INSTALLATION
AND REMOVAL
Managed Pressure Drilling
RCD PRESS
SPECS
- PRESS STROKE LENGTH: 36 in (914.4 mm)
- OVERALL HEAD LENGTH (MAXIMUM): 52 in (1,320 mm)
- HEAD OD (MAXIMUM): 24 in (609 mm)
- TUBULAR OD (RANGE): 3 to 7.63 in (76.2 to 193.8 mm)
- UNIT PRESSURE RATING (MAXIMUM): 3,000 PSI (20,700 kPa)
- HYDRAULIC FLOW REQUIREMENTS: 5 to 70 gal/min (19 to 265 L/min)
- Safe and efficient installation process
- Reduces hazards and NPT on the rig floor
- Inline time savings equate to a more productive operation
Why It Matters
On MPD work, idle rig time during critical path steps is the fastest way to inflate the AFE. Moving RCD installation offline removes the exposure point and keeps the rig sequence cleaner when timing matters most. Onshore or offshore, that change in workflow is where the ROI shows up.
